（一）Signal Sources 系列：



（二）每振动器的参数列表 ：

KU LO 2000 PLL, PLL Stabilized Oscillator
技术规格
Output frequency	2000 MHz
Output power	20 mW (+13 dBm)
Frequency accuracy @ 18°C	+/- 2 ppm
Frequency stability @ 0 40 °	+/- 3 ppm
Phase noise @ 10 kHz	typ. -90 dBc/Hz
Supply voltage	+9 ... 15 V DC
Current consumption	typ. 160 mA
Output / Impedance	SMA-female / 50 ohms
Case	milled aluminium
Dimensions (mm)	80 x 60 x 20
Weight	140 g

（三）每倍频器的参数列表 ：

KU X2 1545 A, Frequency Doubler
技术规格
Input frequency	7500..22500 MHz
Output frequency	15000 ... 45000 MHz
Input power	min. 1 mW (0 dBm), max. 10 mW (+10 dBm)
Output power	typ. 5 mW (7 dBm)
Fundamental rejection	typ. 20 dB
Supply voltage	+10 ... 14 V DC
Current consumption	typ. 220 mA
Operating case temp. range	-20 ... +55 °C
Input connector / impedance	SMA-female, 50 ohms
Output connector / impedance	K-female, 50 ohms
Case	milled Aluminium
Dimensions (mm)	50 x 30 x 17

（四）每信号发生器的参数列表 ：

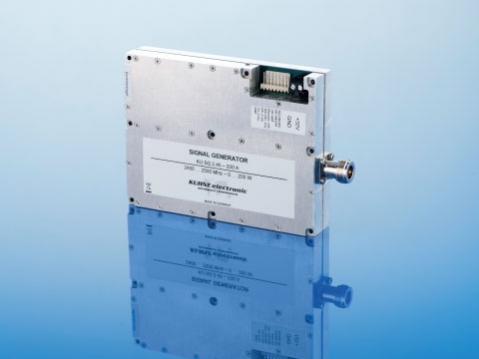

KU SG 2.45-200 A, Signalgenerator
技术规格
Frequency range	2400 ... 2500 MHz
Frequency step size	5 MHz
ON Voltage	+5 V DC
maximum case temperature	+70 °C
Output power	0 ... 200 W
Output power step size	10 W
Protection functions	isolator
Remote control	GUI / Serial (3.3V)
Supply Voltage	32 V DC
Current consumption	typ. 16 A @ 200 W
Output / impedance	N-female / 50 ohms
Case	milled aluminium
Dimensions	144 x 107 x 25 mm
Weight	640 g (typ.)
