（一）概述

Features:	特性
0 to ± 50 maximum continuous adjustment	最大连续调整范围0〜±50
Low ripple and drift output	低波纹和漂移输出
Precision voltage / current displays	精密电压/电流显示
Over current protection	过流保护
Over heat protection	过热保护
Easy setup and operation	易于操作和 设置
Applications:	应用
High voltage power supply	高压电源
High voltage susceptibility test	高电压易感性试验
ESD susceptibility test	ESD敏感性试验
Electrostatic generator	静电发生器
Material insulation test	材料绝缘试验
HV or E-field calibration	HV或电场校准
Electrospinning	静电纺丝
Specifications:	规格
DC 0 to ± max continuous adjustment	最大连续调整直流范围》0
1% precision	精度为1%
110 or 220 or Universal VAC	通用电压为：110 or 220 or VAC
Time drift 0.1% / 24 hours	每24小时时间漂移0.1%
Over current protection	过流保护
Over heat protection	过热保护
Basic Configuration:	基本配置
Instrument	仪器仪表
HV Cable	电压电缆线
Manual	操作手册
Option Models (examples)	可选模式

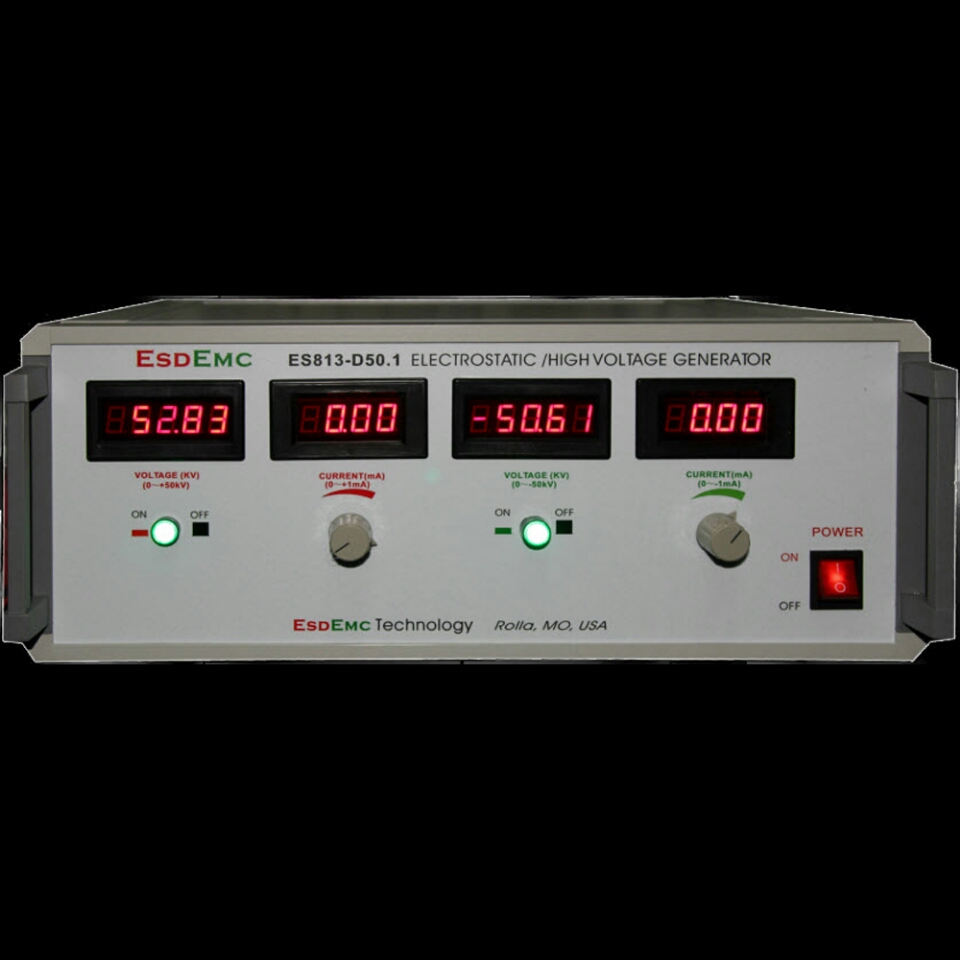

ES813-D50.1  0 to ±20, 1mA
Customization available.	可定制
Operation Conditions:	操作条件
Temperature -10 to + 50 °C
Humidity         20-80% RH
Pressure           68-106 kPa
Dimension / Weight (roughly):	50kV: 34 × 15 × 32 cm, 6-8 kg
Service
1 year warranty (extendable)	一年质保（可地制）
Lifetime technical support
Free test plan consulting	免费提供咨询
